GAL serial Auto Level with air damping 20X/24X/28X/32X green/red color

Product Categories
GEO-ALLEN CO.,LTD.
Contact Now

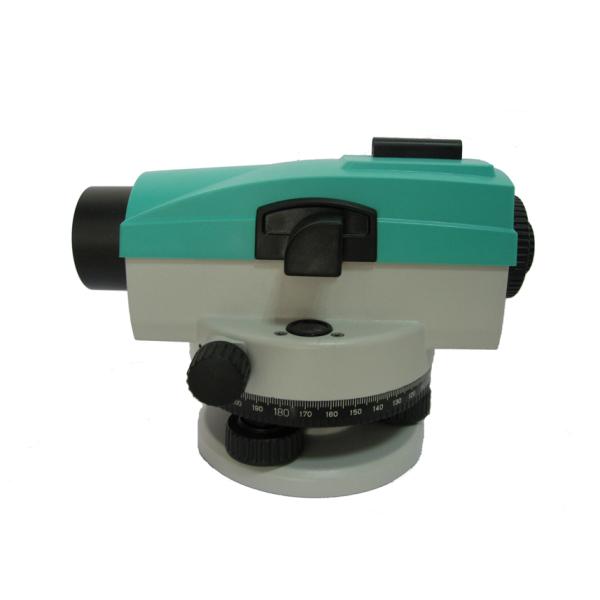

GAL serial Auto Level with air damping 20X/24X/28X/32X green/red color

  • 1
  • 2
  • 3

Brand Name : GEOALLEN

Model Number : GAL serial

Packaging Details : plastic case & carton box

Place of Origin : china

MOQ : 4 PCS

Supply Ability : 10000PCS

Payment Terms : L/C, T/T

Price : USD

color : red/green

magnification : 20X /24X /28X /32X

image : erect

degree : 360/400 degree

Contact Now

GAL serial Auto Level with air damping 20X/24X/28X/32X green/red color

Specification:　

　 GAL20 GAL24 GAL28 GAL32
Standard Deviation for 1km 2.0mm 2.0mm 1.5mm 1.0mm
Double-run Leveling
Image Erect Erect Erect Erect
Magnification 20X 24X 28X 32X
Objective Aperture 40mm 40mm 40mm 40mm
Field of View 1°20’ 1°20’ 1°20’ 1°20’
Minimum Focus 0.65m 0.65m 0.65m 0.65m
Multiplication Constant 100 100 100 100
Additive Constant 0 0 0 0
Compensating Range +/-15' +/-15' +/-15' +/-15'
Setting Accuracy +/-0.5" +/-0.5" +/-0.4" +/-0.3"
Sensitivity of Bubble 8'/2mm 8'/2mm 8'/2mm 8'/2mm
Circle Reading 1°/1gon 1°/1gon 1°/1gon 1°/1gon

GAL serial Auto Level with air damping 20X/24X/28X/32X green/red color

GAL serial Auto Level with air damping 20X/24X/28X/32X green/red color
